Reclaiming stability with Deep Brain Stimulation

Ever since I can remember, my grandmother has had shaky hands. Although shakiness and aging often go hand-in-hand, her unsteadiness was diagnosed as an essential tremor (ET), the most common form of pathological tremor (1). ET affects about 4% of people over 40 years old (2), and is characterized most often by a tremor of the arms during voluntary motion, but it can also affect the rest of the body (1).

Essential tremors are often referred to as “benign” because they are not indicative of any neurodegenerative diseases (2), but my grandmother’s tremor has been far from benign for her lifestyle. She retired from her job as town secretary because she was embarrassed by her increasingly jagged signature. Since then, her increasing tremor has forced her to give up baking her famous cookies and sewing doll clothes for her granddaughters. When she goes out to eat, she chooses items that don’t require utensils, since the food will fall off the fork or spoon before reaching her mouth. We don’t realize how crucial a relatively steady hand is for almost everything we do in life until we don’t have one.

A few months ago, at 90 years old, my grandmother decided she was sick of shaking all the time. It had started to affect her balance and make her less stable on her feet. A few months later, she was in the operating room undergoing deep brain stimulation (DBS). DBS is a surgical procedure used to treat a number of conditions, including Parkinson’s, tremor disorders, dystonia, and Tourette’s syndrome (5). It has also proven effective for treatment-resistant depression (8) and epilepsy (9).

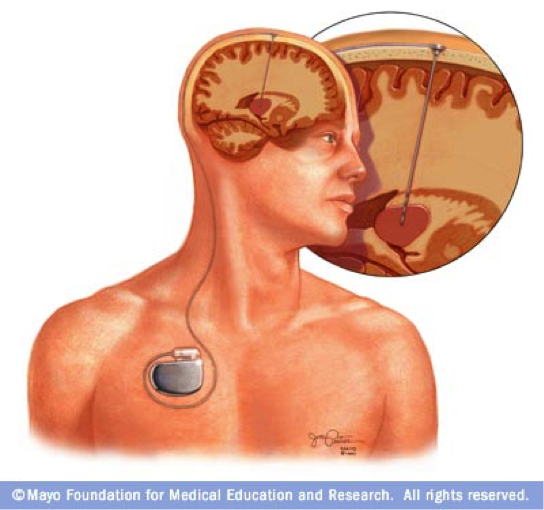

When DBS is used to treat ET, an electrode is placed in the thalamic ventralis intermedius nucleus (1), and a lead is implanted to connect the electrode to a neurostimulator/implantable pulse generator (IPG) implanted below the clavicle. The ventral intermediate nucleus projects to the motor cortex, so it’s highly involved in the types of movements that ET patients struggle most with (6). The IPG contains a battery and sends electrical pulses to the electrode, which in turn reduces the tremor. The IPG can be controlled with an external remote control, which allows the doctor to program the doctor to program the pulse generator or the patient to make minor adjustments at home (7). Some patients are even instructed to turn the IPG off when sleeping.

(7)

(7)

An understanding of the mechanisms through which DBS works is still murky (1). Researchers do know that the electrical impulses block the tremor-inducing nerve signals, but exactly how that is done is still being investigated (5). The process of thalamotomy is used to destroy parts of a dysfunctional thalamus (3). Although DBS uses techniques from thalamotomy, it disrupts the activity of the thalamus without causing destruction. For this reason, DBS is associated with fewer side effects and is reversible.

Because DBS can is performed in one hemisphere at a time (but often performed in the second hemisphere if results are not satisfactory after one), my right-handed grandmother opted to have the electrode implanted in her left hemisphere (4). During the surgery, the doctor applied a pulse to the electrode and her tremor stopped, but the electricity was then cut off to allow her swelling to go down. In the days following the surgery, she had a headache but no reduction in the tremor (this was to be expected since there was no electricity flowing to the electrode). Then, a few weeks later, the doctor activated the neurostimulator, and the tremor immediately decreased. Before the surgery, her hands were equally shaky. This video shows the post-operative contrast in her newly stable right hand and unaltered left hand:

All studies of DBS for essential tremor have found significant reductions in tremor, but information reporting changes in the quality of life for patients after surgery is lacking (1). I can only speak for my grandmother, but if the enthusiasm with which she assures me she has been practicing writing her name is any indicator for other recipients of DBS, the procedure has exciting potential for bringing physical stability back into many lives.

References

(1)  Flora, E. D., Perera, C. L., Cameron, A. L. & Maddern, G. J. (2010), Deep brain stimulation for essential tremor: A systematic review. Mov. Disord., 25 1550–1559. DOI: 10.1002/mds.23195
(2)  Abboud, H., Ahmed, A., & Fernandez, H. H. (2011). Essential tremor: Choosing the right management plan for your patient. Cleveland Clinic Journal of Medicine, 78(12) 821-828. DOI: 10.3949/ccjm.78a.10178
(3)  Mental Health and Deep Brain Stimulation. WebMd.
(4)  Taba, H.A., Wu, S.S., Foote, K.D., Hass, C.J., Fernandez, H.H., Malaty, I.A., Rodriguez, R.L., Dai, Y., Zellman, P.R., Jacobson, C.E., & Okun, M.S. (2010). A closer look at unilateral versus bilateral deep brain stimulation: Results of the National Institutes of Health COMPARE cohort. J. Neurosurg., 114(6), 1224-9.(5)  Deep Brain Stimulation. Suburban Hospital, Johns Hopkins Medicine.
(6)  Ventral intermediate nucleus (TA) of thalamus. MediLexicon.
(7)  Deep Brain Stimulation. Mayo Clinic.
(8)  Mayberg, H.S., Lozano, A.M., Voon, V., McNeely, H.E., Seminowicz, D., Hamani, C., Schwalb, J.M., & Kennedy, S.H. (2005). Deep brain stimulation for treatment-resistant depression. Neuron, 45, 651-660.
(9)  Boon, P., Vonck, K., De Hert, V., Van Dyke, A., Goethals, M., Goossens, L., Van Zandijcke, M., De Smedt, T., Dewaele, E., Achten, R., Wadman, W., Dewaele, F., Caemaert, J., & Van Roost, D. (2007). Deep brain stimulation in patients with temporal lobe epilepsy. Epilepsia, 48(8), 1551-1560.
